IN 1951 the governing body of Motor Racing, The Federation Internationale de I'Automobile published new technical regulations for Formula 1 to come into effect from January 1, 1954. The main change concerned the engine size which was to be 2500cc for normally aspirated engines and only 750cc for supercharged powerplants. This gave the constructors over two years to design and build, but with Alfa Romeo retiring from motor sport at the time of the announcement no major car producers were left in GP racing. The interim Formula 2 championship was fought over by Ferrari, Maserati and Gordini.
Two big manufacturers did decide to prepare cars, and part of both companies' plans was the gaining of experience in post war motor sport by entering production based machinery in important sports car races. One company was Mercedes Benz with their successful history in motor sport who with their successful history in motor sport decided to return with a big effort German industry still rebuilding after the war.
The second team to make the decision was the Lancia Factory. Vincenzo Lancia, the founder, raced for FIAT before the 1914-18 war and his company produced many outstanding models during the 1920s-30s, although they did not compete in the sport during this period. After the Second World War, the founder's son, Gianni Lancia decided to boost sales with favourable publicity and hopefully build up the family concern into a mass production empire to rival the big manufacturers. To achieve this he organised a techinical team, under the great engineer Vittorio Jano and set out to design a Formula one challenger. Meanwhile the works team entered Lancia Aurelias in Sports events with limited success. The programme was then expanded by designing the D20 and D24 sports cars first as a coupe, then as an open two seater with engine sizes ranging from 2.6 to 3.3 V-sixes.
As 1954 approached, reigning world champion Alberto Ascari and veteran Luigi Villoresi signed contracts for the season and in early January the car was wheeled out at Caselle Aerodrome and testing began.
The overall bodywork was painted deep crimson with white competition numbers in all cases. Sixteen inch wire wheels were used all round, SlAin. at the front and 7in. at the rear and shod with Pirelli Stevio racing tyres. The wheelbase was 7ft. 6in. (2.286m) and the track, front and rear was 4ft. 2in. (1.270mm). The D 50 had a dry weight of 13671b (620Kg) and an estimated top speed of around 180mph. (290Km/h).
The Lancia D 50's introduction wasa longwinded, long promised affair with entries for all the European GPs. Testing and development problems delayed its debut until the last race of the season.
1954 Spanish GP: Ascari, No. 34 was fastest in practice and led the race from the third lap until he retired with clutch problems on the tenth lap. Team mate Villoresi qualified in fifth place but retired on the second lap. The cars next appeared in South America for the Argentine GP of 1955 - three cars appeared with Eugenio Castellotti joining the team. The cars were as the Spanish GP versions but the bars across the front grille were removed and an extra louvre was made
in each side of the bonnet to aid cooling during the hot race conditiO(ls. The race numbers were 32, 34 and 36 (Ascari. Villoresi and CastelloW). All three failed to finish.
Turin GP: Non-championship event but Lancia's home town. Three all new cars entered with revised 55 style bodywork and heavily riveted alloy side tanks. Theoil cooler was also removed from the left hand pannier the oil being cooled in large pipes running along the inside of the side tanks. Four shoe drum brakes were also tried. Race numbers were 6, 22 and 30 (Ascari, CastelioW and Villoresi). Theyfinished first, third and fourth with only Mieres Maserati splitting the team.
The front suspension was by equal length welded tubular wishbones with the wheel uprights mounted on ball joints. The outer end of the lower wishbone also carried a roller mounting for the transverse leaf spring. Inboard dampers operating adjustable rubber bump fed the suspension loadings back into the chassis. The rear suspension was based on a very lightde Dion tube which was mounted behind the gearbox final drive unit and curved forward to bolt to the wheel uprights and located by twin trailing radius rods. At the base of the hubs, steel plates carried the transverse leaf spring which was centrally mounted within the chassis and linked rocker arms operated inboard mounted telescopic dampers. All four brakes were mounted outboard and were Lancia manufactured hydraulically operated finned drum brakes located on the front and rear hubs.
Vittorio Jano's 90° V8 engine had a capacity of 2487cc and was derived from the D 24 sports V6. Twin overhead camshafts operated the valves on each bank of the engine and two spark plugs per cylinderwere fed by magnetos mounted on the bulkhead. In the centre of the vee, four double choke downdraught carburettors were mounted and they were fed by a neat air entry sunk into the front body moulding. The exhaust pipes, four each side, converged into two long sections which ran along the body sides to the rear of the car. This engine reputedly produced 260bhp at 8200rpm.
The engine was postitioned at an angle in the chassis with the prop shaft running across the cockpit floor to the nearside rear where the twin plate clutch was situated alongside the five speed and reverse gear Pau GP: A further non-championship event with all cars repainted a lightershadeof crimson and four shoe disc brakes dicarded in favour of the earlier two shoe arrangement.
Oil cooling again revised, small pipes replacing the single pipe. Three cars entered numbered 6, 8 and 10 (Ascari, Villoresi and Castellotti). They finished second, fourth and fifth in reverse order behind Behra's Maserati.
Napoli GP: Two cars as above entered for Ascari. NO.6 and Villoresi, No. 12 and they finished first and third in a nine car field.

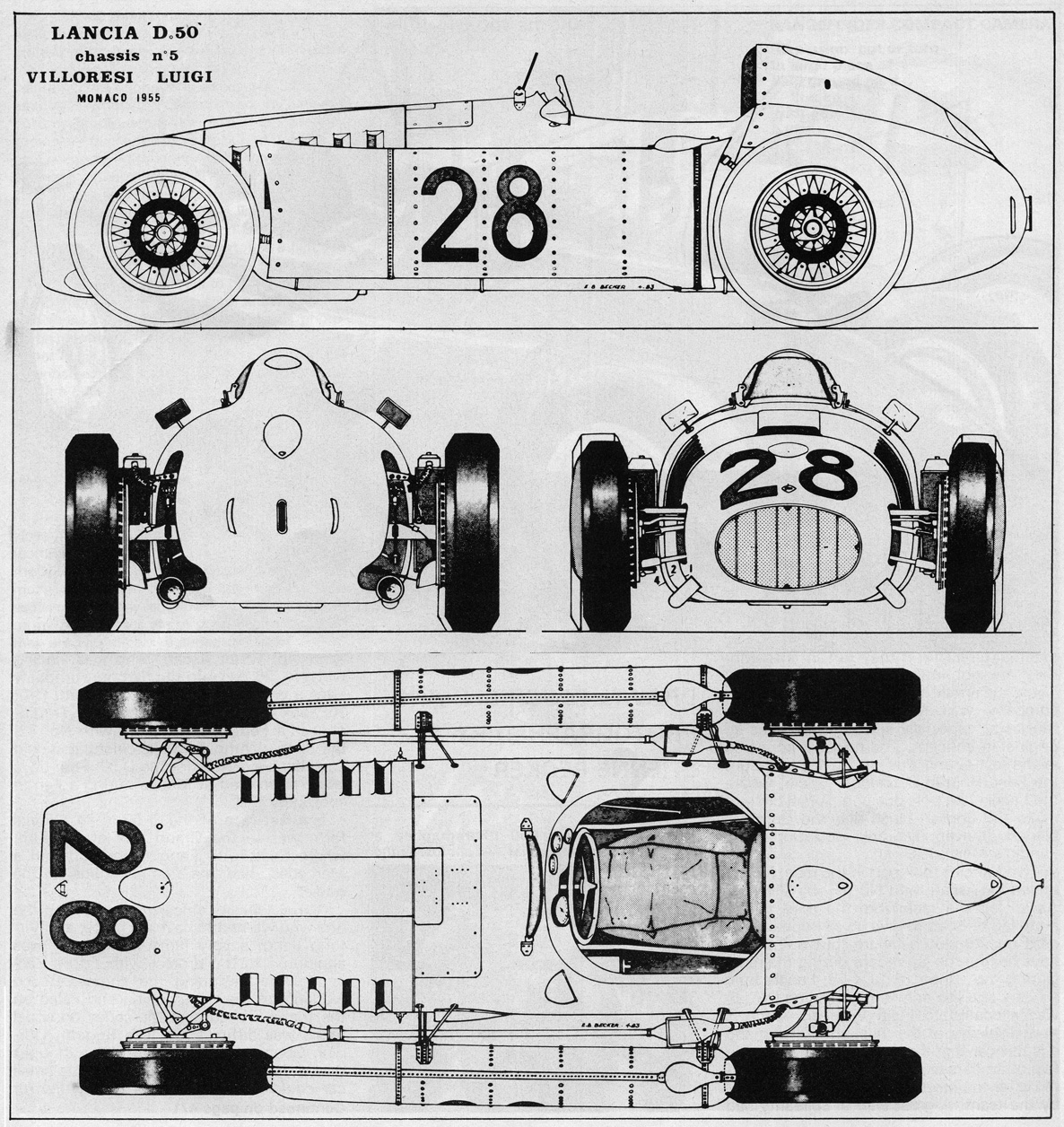

Monaco GP: World championship event Lancia sent four cars entered for Ascari, 26; Villoresi, 28; Castellotti, 30 and Chiron, 32. Again the oil cooling system was revised with two upright radiators one either side of the cockpit between the body and the side tanks. Castel!otti and Chiron had oblong rear view mirrors. Ascar ran out of brakes and crashed into the harbour on lap 81. Castellotti finished second behind Trintingnant's Ferrari with Villoresi and Chiron fifth and sixth.
With Ascari's tragic death four days later in a separate testing accident at Monza and the appalling Le Mans accident of '55 having repercussions all around the world, Lancia decided to pullout of racing and only Castellotti was entered for the Belgium GP. Castellotti, fastest in practice retired with gearbox failure, this being the last official works appearance. Enzo Ferrari was in serious financial trouble and with no competitive design and announced that he was forced to retire from racing. The Automobile Club of Italy and the giant Fiat combine stepped in and negotiated an arr'angement between Ferrari and Lancia, the result being the handing over of the complete racing set up, cars, engineers and certain mechanics from Lancia's Turin works to the famous 'Prancing Horse" stable in Modena.
Ferrari entered the cars in Lancia form on three futher occasions but by now they sported Ferrari badges on the scuttle, Lancia motifs on the front and 'Prova MO' registrations on the tail sections. The D 50 slowly became Ferrari's with Englebert tyres fitted then modified suspension, the fuel tanks were re-situated at the back of the car and the now empty side tanks were streamlined with fullyfaired-in bodywork. History tells us that in this revised form under Ferrari management and with Fangio driving they became World Champions in 1956, but that's another story.
Author: ArchitectPage
Paul Frere in a D50
